ALSECURE PLUS® NX600 LV, 3 CORE CU/MICA/XLPE/SWA/HFFR 0.6/1kV Conforming to BS 7846
ALSECURE PLUS® NX600 LV, 3 CORE CU/MICA/XLPE/SWA/HFFR 0.6/1kV Conforming to BS 7846
ALSECURE PLUS® NX600 LV, 3 CORE CU/MICA/XLPE/SWA/HFFR 0.6/1kV Conforming to BS 7846
Read more3x16
Nexans ref. 23016RXZHSH3ABS0
- Conductor shape: Circular compacted
- Conductor cross-section: 16 mm²
- Approximate weight: 1241 kg/km
- Nominal outer diameter: 24.7 mm
- Max. DC resistance of the conductor at 20°C: 1.15 Ohm/km
- Permissible current rating in open air: 99 A
- Permissible current rating when buried: 84 A
3x25
Nexans ref. 23025RXZHSH3ABS0
- Conductor shape: Circular compacted
- Conductor cross-section: 25 mm²
- Approximate weight: 1832 kg/km
- Nominal outer diameter: 29.5 mm
- Max. DC resistance of the conductor at 20°C: 0.727 Ohm/km
- Permissible current rating in open air: 131 A
- Permissible current rating when buried: 107 A
3x35
Nexans ref. 23035RXZHSH3ABS0
- Conductor shape: Circular compacted
- Conductor cross-section: 35 mm²
- Approximate weight: 2217 kg/km
- Nominal outer diameter: 31.8 mm
- Max. DC resistance of the conductor at 20°C: 0.524 Ohm/km
- Permissible current rating in open air: 162 A
- Permissible current rating when buried: 129 A
3x50
Nexans ref. 23050RXZHSH3ABS0
- Conductor shape: Sector-shaped
- Conductor cross-section: 50 mm²
- Approximate weight: 2587 kg/km
- Nominal outer diameter: 31.8 mm
- Max. DC resistance of the conductor at 20°C: 0.387 Ohm/km
- Permissible current rating in open air: 197 A
- Permissible current rating when buried: 153 A
3x70
Nexans ref. 23070RXZHSH3ABS0
- Conductor shape: Sector-shaped
- Conductor cross-section: 70 mm²
- Approximate weight: 3329 kg/km
- Nominal outer diameter: 35.3 mm
- Max. DC resistance of the conductor at 20°C: 0.268 Ohm/km
- Permissible current rating in open air: 251 A
- Permissible current rating when buried: 188 A
3x95
Nexans ref. 23095RXZHSH3ABS0
- Conductor shape: Sector-shaped
- Conductor cross-section: 95 mm²
- Approximate weight: 4563 kg/km
- Nominal outer diameter: 39.9 mm
- Max. DC resistance of the conductor at 20°C: 0.193 Ohm/km
- Permissible current rating in open air: 304 A
- Permissible current rating when buried: 226 A
3x120
Nexans ref. 23120RXZHSH3ABS0
- Conductor shape: Sector-shaped
- Conductor cross-section: 120 mm²
- Approximate weight: 5368 kg/km
- Nominal outer diameter: 43.0 mm
- Max. DC resistance of the conductor at 20°C: 0.153 Ohm/km
- Permissible current rating in open air: 353 A
- Permissible current rating when buried: 257 A
3x150
Nexans ref. 23150RXZHSH3ABS0
- Conductor shape: Sector-shaped
- Conductor cross-section: 150 mm²
- Approximate weight: 6731 kg/km
- Nominal outer diameter: 47.9 mm
- Max. DC resistance of the conductor at 20°C: 0.124 Ohm/km
- Permissible current rating in open air: 406 A
- Permissible current rating when buried: 287 A
3x185
Nexans ref. 23185RXZHSH3ABS0
- Conductor shape: Sector-shaped
- Conductor cross-section: 185 mm²
- Approximate weight: 8047 kg/km
- Nominal outer diameter: 52.0 mm
- Max. DC resistance of the conductor at 20°C: 0.099 Ohm/km
- Permissible current rating in open air: 463 A
- Permissible current rating when buried: 324 A
3x240
Nexans ref. 23240RXZHSH3ABS0
- Conductor shape: Sector-shaped
- Conductor cross-section: 240 mm²
- Approximate weight: 9989 kg/km
- Nominal outer diameter: 57.1 mm
- Max. DC resistance of the conductor at 20°C: 0.075 Ohm/km
- Permissible current rating in open air: 546 A
- Permissible current rating when buried: 375 A
3x300
Nexans ref. 23300RXZHSH3ABS0
- Conductor shape: Sector-shaped
- Conductor cross-section: 300 mm²
- Approximate weight: 12030 kg/km
- Nominal outer diameter: 62.0 mm
- Max. DC resistance of the conductor at 20°C: 0.06 Ohm/km
- Permissible current rating in open air: 628 A
- Permissible current rating when buried: 419 A
3x400
Nexans ref. 23400RXZHSH3ABS0
- Conductor shape: Sector-shaped
- Conductor cross-section: 400 mm²
- Approximate weight: 14930 kg/km
- Nominal outer diameter: 68.5 mm
- Max. DC resistance of the conductor at 20°C: 0.047 Ohm/km
- Permissible current rating in open air: 731 A
- Permissible current rating when buried: 439 A
Description
Description
Standards
-
InternationalIEC 60331-1 or 2; IEC 60332-3-24; IEC 60754; IEC 61034
-
NationalBS 6387; BS 7846
Scope
These cables are widely used in Fire alarm systems ,emergency lightning power safety circuits when installed in conduits or protected trunking .

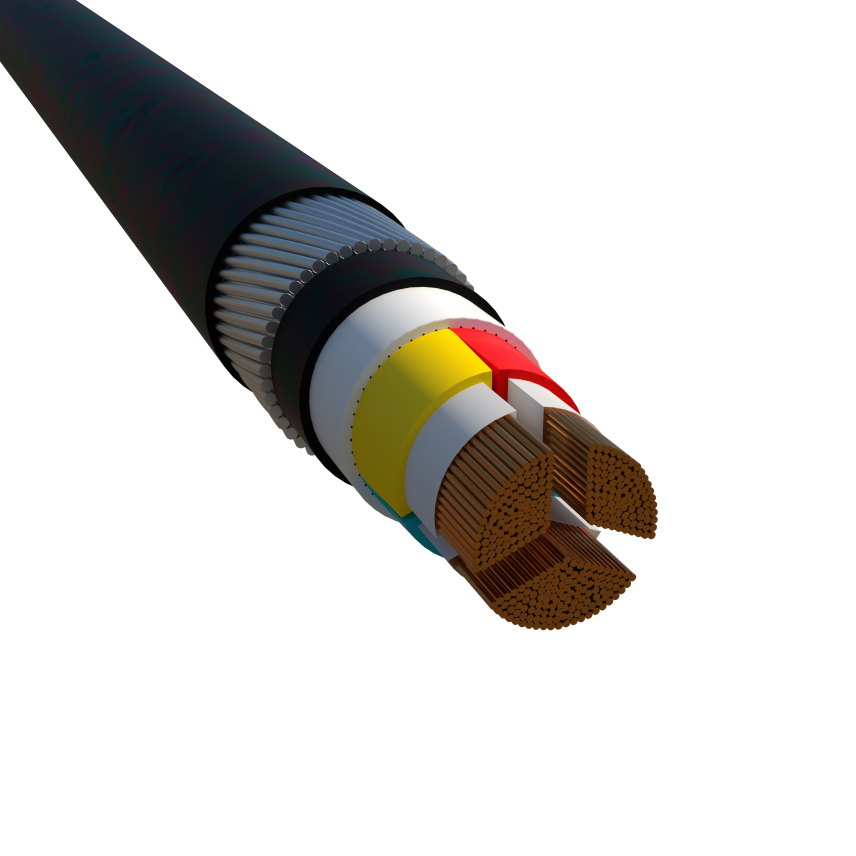

Design
1.Conductor
Plain annealed high conductivity stranded bare copper class 2 to BS EN 60228
2.Fire barrier
Mica Glass Tape
3.Insulation
Cross Linked Polyethylene "XLPE"
4. Bedding
Halogen Free Flame retardant "HFFR" .
5. Armour
Galvanised steel wire armour "SWA".
6. Outersheath
Halogen Free Flame retardant "HFFR" .
Marking (by Embossing/Engraving)
FIRST Line:
ELECTRIC CABLE 600/1000 V BS 7846-F120 QICC -NEXANS ALSECURE PLUS NX 600 Cores x Size LPCB 1262d/01 Year
SECOND Line :
ELECTRIC CABLE 600/1000 V BS 7846-F120 QICC-NEXANS METER
Certficate of Product Approval
The product listed under this category are approved with LPCB ( LOSS PREVENTION CERTIFICATION BOARD) & QCDD (QATAR CIVIL DEFENSE DEPARTMENT) .
