Bare copper conductor as per IEC 60228
Bare copper conductor as per IEC 60228

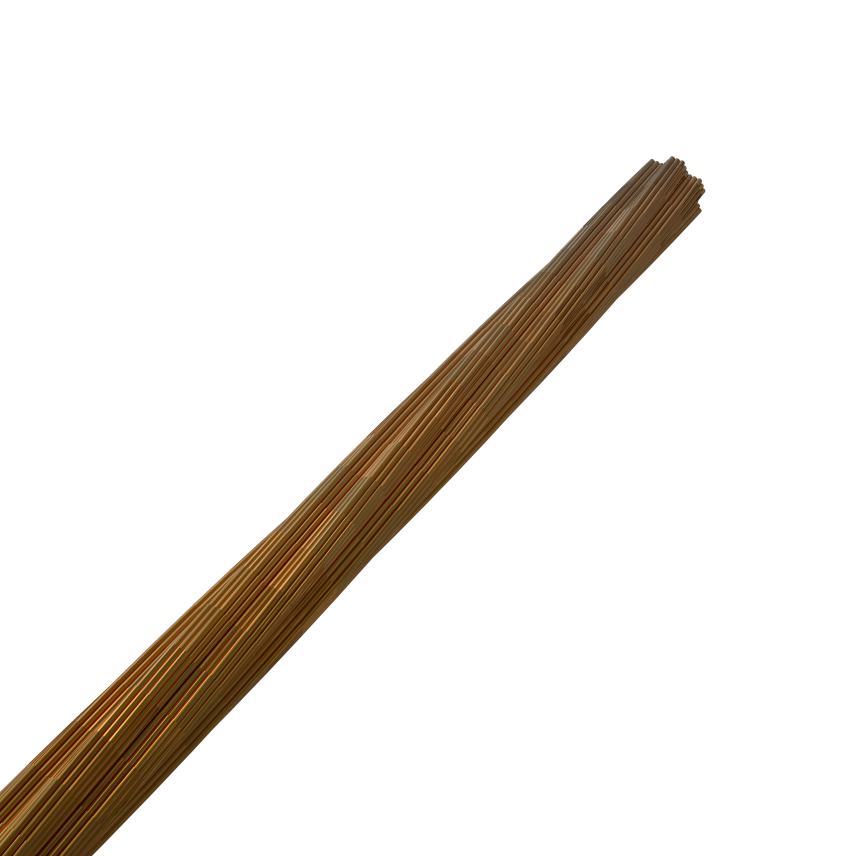

Single-core Bare copper conductor as per IEC 60228
Read more1x1.5
Nexans ref. 21002LOZOUZ000D0
- Conductor cross-section: 1.5 mm²
- Nominal outer diameter: 1.52 mm
- Max. DC resistance of the conductor at 20°C: 12.1 Ohm/km
1x2.5
Nexans ref. 21003LOZOUZ000D0
- Conductor cross-section: 2.5 mm²
- Nominal outer diameter: 1.95 mm
- Max. DC resistance of the conductor at 20°C: 7.41 Ohm/km
1x4
Nexans ref. 21004LOZOUZ000D0
- Conductor cross-section: 4 mm²
- Nominal outer diameter: 2.52 mm
- Max. DC resistance of the conductor at 20°C: 4.61 Ohm/km
1x6
Nexans ref. 21006LOZOUZ000D0
- Conductor cross-section: 6 mm²
- Nominal outer diameter: 3.06 mm
- Max. DC resistance of the conductor at 20°C: 3.08 Ohm/km
1x10
Nexans ref. 21010LOZOUZ000D0
- Conductor cross-section: 10 mm²
- Nominal outer diameter: 3.76 mm
- Max. DC resistance of the conductor at 20°C: 1.83 Ohm/km
1x16
Nexans ref. 21016LOZOUZ000D0
- Conductor cross-section: 16 mm²
- Nominal outer diameter: 4.67 mm
- Max. DC resistance of the conductor at 20°C: 1.15 Ohm/km
1x25
Nexans ref. 21025LOZOUZ000D0
- Conductor cross-section: 25 mm²
- Nominal outer diameter: 5.9 mm
- Max. DC resistance of the conductor at 20°C: 0.727 Ohm/km
1x35
Nexans ref. 21035LOZOUZ000D0
- Conductor cross-section: 35 mm²
- Nominal outer diameter: 6.9 mm
- Max. DC resistance of the conductor at 20°C: 0.524 Ohm/km
1x50
Nexans ref. 21050LOZOUZ000D0
- Conductor cross-section: 50 mm²
- Nominal outer diameter: 8.1 mm
- Max. DC resistance of the conductor at 20°C: 0.387 Ohm/km
1x70
Nexans ref. 21070LOZOUZ000D0
- Conductor cross-section: 70 mm²
- Nominal outer diameter: 9.7 mm
- Max. DC resistance of the conductor at 20°C: 0.268 Ohm/km
1x95
Nexans ref. 21095LOZOUZ000D0
- Conductor cross-section: 95 mm²
- Nominal outer diameter: 11.4 mm
- Max. DC resistance of the conductor at 20°C: 0.193 Ohm/km
1x120
Nexans ref. 21120LOZOUZ000D0
- Conductor cross-section: 120 mm²
- Nominal outer diameter: 12.9 mm
- Max. DC resistance of the conductor at 20°C: 0.153 Ohm/km
1x150
Nexans ref. 21150LOZOUZ000D0
- Conductor cross-section: 150 mm²
- Nominal outer diameter: 14.2 mm
- Max. DC resistance of the conductor at 20°C: 0.124 Ohm/km
1x185
Nexans ref. 21185LOZOUZ000D0
- Conductor cross-section: 185 mm²
- Nominal outer diameter: 16.0 mm
- Max. DC resistance of the conductor at 20°C: 0.099 Ohm/km
1x240
Nexans ref. 21240LOZOUZ000D0
- Conductor cross-section: 240 mm²
- Nominal outer diameter: 18.0 mm
- Max. DC resistance of the conductor at 20°C: 0.075 Ohm/km
1x300
Nexans ref. 21300LOZOUZ000D0
- Conductor cross-section: 300 mm²
- Nominal outer diameter: 20.1 mm
- Max. DC resistance of the conductor at 20°C: 0.06 Ohm/km
1x400
Nexans ref. 21400LOZOUZ000D0
- Conductor cross-section: 400 mm²
- Nominal outer diameter: 23.6 mm
- Max. DC resistance of the conductor at 20°C: 0.047 Ohm/km
1x500
Nexans ref. 21500LOZOUZ000D0
- Conductor cross-section: 500 mm²
- Nominal outer diameter: 26.76 mm
- Max. DC resistance of the conductor at 20°C: 0.037 Ohm/km
1x630
Nexans ref. 21630LOZOUZ000D0
- Conductor cross-section: 630 mm²
- Nominal outer diameter: 30.3 mm
- Max. DC resistance of the conductor at 20°C: 0.028 Ohm/km
Description
Description
Standards
-
ProductIEC 60228
Application
Single-core Bare copper conductor using for earthing, This group is complying with IEC 60228.
Design
1. Conductor
Stranded bare copper class 2 acc. to IEC 60228 or equivalent
